Autoclave Rtd Sensors – Radix/ Ấn Độ
Radix Autoclave RTD sensors are designed to withstand the high pressure and temperature environment of the sterilization process in autoclaves. These products are often found operating in pharmaceutical facilities and laboratories.
Model RAC243 is intended for autoclave validation only, while RAC244 is for continuous use in the autoclave. Our autoclave RTDs can measure temperature upto 150°C. Their thick walled silicone rubber jacket and strain relief sleeve ensure a leak proof joint and they can be completely submerged in water.
RAC244: For Continuous Processes
RAC243: For Validation Only
Accurately measures temperatures of the sterilization process in autoclaves
Temperature range: Up to 150°C
3-wire Pt100 element in simplex or duplex assembly
Silicon Rubber insulated Cable in 5 meters and 10 meters or Teflon insulated Cable in 3 meters, 5 meters and 10 meters
-RAC244 / RT044
Autoclave RTD sensors are designed to withstand the high pressure and temperature environment of the continuous sterilization process in autoclaves. This sensor measures temperatures up to 150°C. The RTD sensor has a thick walled silicone rubber jacket along with a strain relief sleeve to ensure a leak proof joint and it can be completely submerged in water. Its 3-wire Pt100 RTD element can be constructed in single or dual assembly in Class B / Class A as per the IEC 751 standard for RTD sensors. For RTD sensors to be used for autoclave validation, refer RAC243 / RT043
3-wire Pt100 element in simplex or duplex assembly
6mm diameter, 100mm long
SS316L sheath
0 to 150°C range
Silicon Rubber insulated Cable in 5 meters and 10 meters

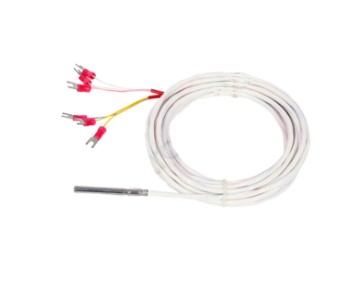

-RAC243 / RT043
Autoclave Validation RTD sensors are designed to withstand the high pressure and temperature environment of the sterilization process in autoclaves under validation. This sensor measures temperatures up to 150°C. Its teflon insulated cable with strain relief sleeve ensures a leak proof joint and the RTD sensor can be completely submerged in water. Its 3-wire Pt100 RTD element can be constructed in single or dual assembly in Class B / Class A as per the IEC 751 standard for RTD sensors. For RTD sensors to be used for continuous sterilization process, refer MODEL–RAC244 / RT044.
3-wire Pt100 element in simplex or duplex assembly
4mm diameter, 50mm long SS316L sheath
0 to 150°C range
Teflon insulated Cable in 3 meters, 5 meters and 10 meters
Giá: Liên hệ
