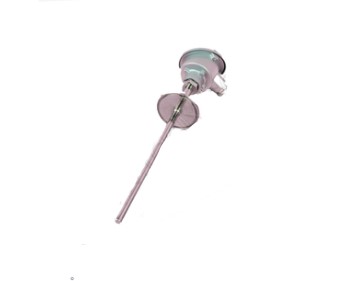

Sanitary Rtd With Tri Clover Connection - Head Type – Radix/ Ấn Độ
RH6*7
Sanitary RTD sensors with tri clover connections and a head type terminations, are built for food, dairy, beverage, pharmaceutical and chemical industries, where maintenance of hygiene is critical in order to prevent contamination. Tri clover connections offers a clean and hygienic connection, designed to be clean in place (CIP). It is constructed to have no exposed thread connections and no abrupt changes in the structure, thereby preventing any contaminant buildup. Triclover connections are made of SS316L, built in 0.5”, 1” and 1.5 “ sizes. The RTD sensor is built with SS316L sheath. As the sheath does not bend, a sheath length greater than 300 mm is not recommended. The sheath terminates into a die cast, weatherproof aluminium head. The termination head is also available in a range of other materials. The sensor measure temperatures between -50 and 250°C. Its 2, 3 or 4 wire Pt100 RTD element can be constructed in single or dual assembly in Class A/Class B as per the IEC 751 standard for RTD sensors. The terminal head of the RTD sensors has a standard 1/2” BSP (F) single cable entry and a single compression cable gland.
Optional :
Mounting Clamp and Gasket
Dual cable entries and double compression cable glands are optional.
Head mounted transmitters
Connecting Cables
2, 3 or 4-wire platinum element in simplex or duplex assembly
-50 to 250°C range
0.5” / 1” / 1.5” / 2 “ Triclover connections
SS316L wetted parts
Termination : Weatherproof Die cast aluminum head with threaded cap and chain
1/2"BSP (F) single cable entry with single compression gland
Optional reduced sheath assembly for fast response
Giá: Liên hệ
Sanitary RTD sensors with tri clover connections and a head type terminations, are built for food, dairy, beverage, pharmaceutical and chemical industries, where maintenance of hygiene is critical in order to prevent contamination. Tri clover connections offers a clean and hygienic connection, designed to be clean in place (CIP). It is constructed to have no exposed thread connections and no abrupt changes in the structure, thereby preventing any contaminant buildup. Triclover connections are made of SS316L, built in 0.5”, 1” and 1.5 “ sizes. The RTD sensor is built with SS316L sheath. As the sheath does not bend, a sheath length greater than 300 mm is not recommended. The sheath terminates into a die cast, weatherproof aluminium head. The termination head is also available in a range of other materials. The sensor measure temperatures between -50 and 250°C. Its 2, 3 or 4 wire Pt100 RTD element can be constructed in single or dual assembly in Class A/Class B as per the IEC 751 standard for RTD sensors. The terminal head of the RTD sensors has a standard 1/2” BSP (F) single cable entry and a single compression cable gland.
Optional :
Mounting Clamp and Gasket
Dual cable entries and double compression cable glands are optional.
Head mounted transmitters
Connecting Cables
2, 3 or 4-wire platinum element in simplex or duplex assembly
-50 to 250°C range
0.5” / 1” / 1.5” / 2 “ Triclover connections
SS316L wetted parts
Termination : Weatherproof Die cast aluminum head with threaded cap and chain
1/2"BSP (F) single cable entry with single compression gland
Optional reduced sheath assembly for fast response
Giá: Liên hệ
