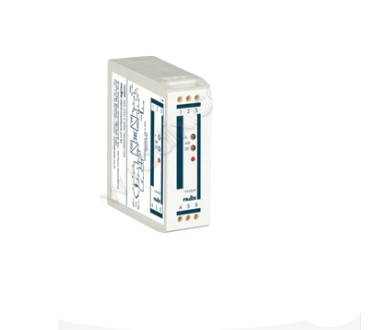

Din Rail Temperature Transmitters, 2-Wire Radix/Ấn độ

This class of Temperature Transmitters is specifically designed for 35 mm DIN rail mounting. Radix has various options for type of input, signal isolation and a special HART compatible product (SCC632) to suit various applications.
-SCC632
12.5mm slim Din-rail enclosure
2-wire, 4~20mA output with HART
Universal input - Thermocouple, RTD, Resistance, Voltage
7.5 to 48 VDC supply voltage range
-20 to +85 °C operating temperature
2KV AC RMS galvanic isolation
Resistance input upto 5K
Voltage input up-to 1000mV
Active temperature compensation
-SCC602
12.5mm slim Din-rail enclosure
2-wire, 4~20mA output
Universal input - Thermocouple, RTD, Resistance, Voltage
7.5 to 48 VDC supply voltage range
-20 to +85 °C operating temperature
2KV AC RMS galvanic isolation
Resistance input upto 5K
Voltage input up-to 1000mV
Active temperature compensation
PC programmable using utility and programmer
-SCC622
-TX1DR
-TX2DR (Pt100)
-TX2DR (TC/mV)
-SCC621
-TX3DR
-SCC633
Giá: Liên hệ
