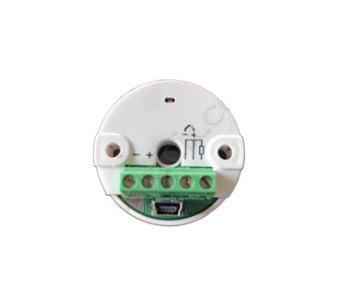

Head Mount Temperature Transmitters Radix/Ấn độ
Head Mounted Transmitters convert low-level input signals from field sensors into a proportional 4 - 20 mA output that is ideal for driving other control instrumentation.
Few models of Radix temperature transmitters also has signal isolation and also comes with the HART communication options. Radix temperature transmitters convert a variety of input signals into a scalable 4 to 20 mA analogue output signal. The transmitter converts 8 types of thermocouples (B, E, J, K, N, R, S, T), RTDs (Pt100, Pt500, Pt1000, Cu53, Ni100, Ni500, Ni1000) resistance (0 up to 400Ω, 2000Ω or 5000Ω) and a wide range of linear voltage inputs (-10-75 mV, -100-100 mV, -100-500 mV, -100-1000 mV). Few head mount temperature transmitter has an internal temperature sensor for active temperature compensation. The SCC641/631 is in range high quality temperature transmitter, with an efficacy loss of less than 0.05% per year.
-TX1HM
Solder jumpers for - Upscale / Downscale for sensor break, 4-20 mA / 20-4 mA, 8 span ranges from 25 to 600 °C, 4 zero ranges from - 100 to +70 °C, 4-20 mA or 20-4 mA selection, °C / °F
Low profile allows use in small RTD head
Accuracy: 0.1% of span
6.5 V loop drop allows 800 ohms load @ 24 V DC
ON LED shows state
-SCC643
User programmable with PC based utility software and USB configurator
2-wire technology, 4~20 mA analog output
Accuracy over total ambient temperature range
Active temperature compensation
Supply range 7.5~45 VDC
User programmable measurement range, unit, bias, preset output, etc
SCC643 UNIVERSAL INPUT
.
User programmable with PC based utility software and USB configurator
2-wire technology, 4~20 mA analog output
Accuracy over total ambient temperature range
Active temperature compensation
Supply range 7.5~45 VDC
User programmable measurement range, unit, bias, preset output, etc
Giá: Liên hệ
Few models of Radix temperature transmitters also has signal isolation and also comes with the HART communication options. Radix temperature transmitters convert a variety of input signals into a scalable 4 to 20 mA analogue output signal. The transmitter converts 8 types of thermocouples (B, E, J, K, N, R, S, T), RTDs (Pt100, Pt500, Pt1000, Cu53, Ni100, Ni500, Ni1000) resistance (0 up to 400Ω, 2000Ω or 5000Ω) and a wide range of linear voltage inputs (-10-75 mV, -100-100 mV, -100-500 mV, -100-1000 mV). Few head mount temperature transmitter has an internal temperature sensor for active temperature compensation. The SCC641/631 is in range high quality temperature transmitter, with an efficacy loss of less than 0.05% per year.
-TX1HM
Solder jumpers for - Upscale / Downscale for sensor break, 4-20 mA / 20-4 mA, 8 span ranges from 25 to 600 °C, 4 zero ranges from - 100 to +70 °C, 4-20 mA or 20-4 mA selection, °C / °F
Low profile allows use in small RTD head
Accuracy: 0.1% of span
6.5 V loop drop allows 800 ohms load @ 24 V DC
ON LED shows state
-SCC643
User programmable with PC based utility software and USB configurator
2-wire technology, 4~20 mA analog output
Accuracy over total ambient temperature range
Active temperature compensation
Supply range 7.5~45 VDC
User programmable measurement range, unit, bias, preset output, etc
SCC643 UNIVERSAL INPUT
.
User programmable with PC based utility software and USB configurator
2-wire technology, 4~20 mA analog output
Accuracy over total ambient temperature range
Active temperature compensation
Supply range 7.5~45 VDC
User programmable measurement range, unit, bias, preset output, etc
Giá: Liên hệ
