Pid Controllers -Radix/Ấn độ
X49

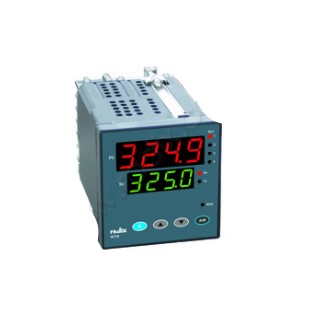

X49 is a full-featured PID controller. It accepts input from 8 types of thermocouples (B, E, J, K, N, R, S, T), Pt100, Cu53 as well as 3-wire RTD sensors, 0 - 50 mV and 4-20 mA or 0 - 20 mA linear inputs. A large LED dual-display on the front of the process controller shows the difference in values of the setpoint and process value while 5 additional LEDs indicate the state of each of the 4 relays and Auto/Manual status. Buttons on the front of X49 allow operators to easily set up to 4 setpoints for each of the relays. With an error of only 0.1% of the full-scale, this is a process controller of superior accuracy. X49's electromagnetic relays trigger heating, cooling or any of 6 types of alarms - full-scale high/low, deviation high/low, inband and outband. It also retransmits an isolated output signal to other devices such as a Programmable Logic Controller (PLC) or Solid-State Relay (SSR). Signal isolation protects your devices and machines downstream of our instruments from damaging fluctuations in the input signal. X49 is an auto-tuning controller; from a cold start or a setpoint.
Universal input
Upto 4 setpoints
Autotuning: From cold start or at setpoint
RS485 / MODBUS RTU
85 - 265 V AC SMPS
Auto / Manual selection
Isolated 0/4 - 20 mA or 0 - 10V DC for control / retransmission output
PID, Proportional and ON-OFF control

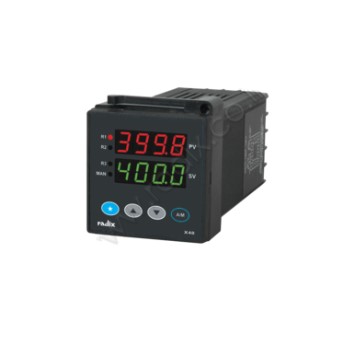

-X48
Universal input
Up to 3 setpoints
Autotuning : From cold start or at setpoint
RS485 / MODBUS RTU
85 - 265 V AC SMPS
Auto / Manual selection
Isolated 0/4-20 mA or 0-10V DC for control / retransmission output
PID, Proportional and ON-OFF control
-X94
Universal input
Upto 4 setpoints
Autotuning: From cold start or at setpoint
RS485 / MODBUS RTU
85 - 265 V AC SMPS
Auto / Manual selection
Isolated 0/4 - 20 mA or 0 - 10V DC for control / retransmission output
PID, Proportional and ON-OFF control
-X96P
-X96
-X72
Giá: Liên hệ
X49 is a full-featured PID controller. It accepts input from 8 types of thermocouples (B, E, J, K, N, R, S, T), Pt100, Cu53 as well as 3-wire RTD sensors, 0 - 50 mV and 4-20 mA or 0 - 20 mA linear inputs. A large LED dual-display on the front of the process controller shows the difference in values of the setpoint and process value while 5 additional LEDs indicate the state of each of the 4 relays and Auto/Manual status. Buttons on the front of X49 allow operators to easily set up to 4 setpoints for each of the relays. With an error of only 0.1% of the full-scale, this is a process controller of superior accuracy. X49's electromagnetic relays trigger heating, cooling or any of 6 types of alarms - full-scale high/low, deviation high/low, inband and outband. It also retransmits an isolated output signal to other devices such as a Programmable Logic Controller (PLC) or Solid-State Relay (SSR). Signal isolation protects your devices and machines downstream of our instruments from damaging fluctuations in the input signal. X49 is an auto-tuning controller; from a cold start or a setpoint.
Universal input
Upto 4 setpoints
Autotuning: From cold start or at setpoint
RS485 / MODBUS RTU
85 - 265 V AC SMPS
Auto / Manual selection
Isolated 0/4 - 20 mA or 0 - 10V DC for control / retransmission output
PID, Proportional and ON-OFF control
-X48
Universal input
Up to 3 setpoints
Autotuning : From cold start or at setpoint
RS485 / MODBUS RTU
85 - 265 V AC SMPS
Auto / Manual selection
Isolated 0/4-20 mA or 0-10V DC for control / retransmission output
PID, Proportional and ON-OFF control
-X94
Universal input
Upto 4 setpoints
Autotuning: From cold start or at setpoint
RS485 / MODBUS RTU
85 - 265 V AC SMPS
Auto / Manual selection
Isolated 0/4 - 20 mA or 0 - 10V DC for control / retransmission output
PID, Proportional and ON-OFF control
-X96P
-X96
-X72
Giá: Liên hệ
