Programmable On-Off Temperature/Process Controllers - Full-Featured Radix/Ấn độ

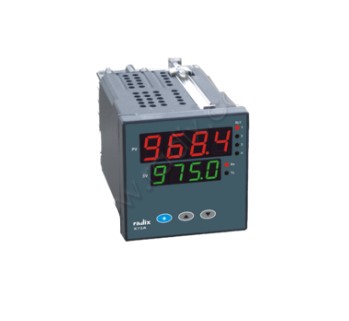

The X series is a range of full-featured ON-OFF Controllers from Radix. These controllers are available in 5 DIN sizes, from 48x48 to 96x96. 1 or 2 universal inputs are available, and include 8 thermocouple types, RTD Pt100, 4 to 20 mA, 0 to 50 mV, and 0 to 1/5/10 VDC. Up to 4 relay outputs rated at 5A/230 VAC are present. 1 or 2 isolated analog outputs (4 to 20 mA, 0 to 10 V, etc) can also be given. For communication, an isolated RS485/MODBUS RTU is provided. The X96A model features an extra large 0.8” (20.3mm) display for the Process Variable. The large number of programmable parameters allows the user to configure the instrument as required for any application. These controllers are also available in flameproof versions. The X96Delta model has special functions such as average and difference, and features a 3-row display.
-X48A
-X49A
-X94A
-X72A
-X96A
-TEC401
Giá: Liên hệ
