Rh+T Transmitter Radix/Ấn độ

Radix offers different types of RH + T Transmitters, they are as follows
-SC805
SC805 accurately measures humidity using capacitive sensor technology & temperature using band gap sensor technology. It generates upto two, 2-wire mA outputs that can be assigned to RH or T using optional 7 segment LCD display and keys or remote display module or PC based configurator. Wall mount, duct mount or remote sensor versions available.
2 analog outputs with true 2-wire operation
Accuracy ± 2 % RH, ± 0.5 ºC for band gap
Any output can be assigned to RH, T
The loop drop of 4.5 V is the lowest among such products
Both outputs are isolated from each other
Dual row 7 segment LCD option to display RH & Temperature
Parameter configuration via PC configurator using USB to Serial Converter DCC501
-SC807
True 2-wire operation
Accuracy : ± 2% RH, ± 0.5 °C
2 x 4-20 mA outputs
Software calibration - no trimpots
4.5-32 V DC loop supply
PC programmable
-SC804
Accuracy : ± 2% RH, ± 0.5 °C
Low loop drop: 11.5 - 32 V DC loop supply
2 x 4-20 mA outputs
Software calibration - no trimpots
IP66, rugged construction
Surface mount

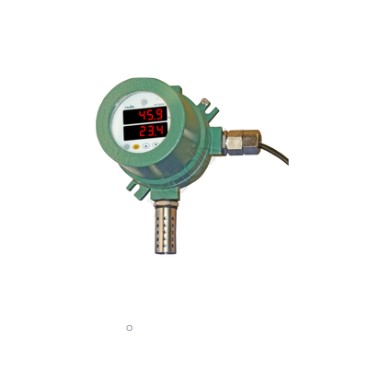

-SC806 (FLAMEPROOF - WALL MOUNT)
True 2-wire operation
Accuracy : ± 2% RH, ± 0.3 °C
2 x 4-20 mA outputs
Software calibration - no trimpots
4.5-32 V DC loop supply
IP66, rugged construction
Wall mount
Sensor break indication
Giá: Liên hệ
